Lift A Deck


Ancra presents the Lift-A-Deck II System, a highly reliable and popular double decker trailer system in the industry. This patented system allows for an adjustable second deck in your trailer, enabling the transportation of twice the amount of palletized freight. You can also mix loads with only a portion of the truck double decked, thereby increasing your hauling capacity and profits.

When full height loads are required, the adjustable beams can be pushed to the roof of the trailer for convenient and safe storage. These beams remain within the trailer at all times, eliminating the need for removal during the loading and unloading process. This ensures that no beams are left on the loading dock and are always available when needed.The Lift-A-Deck II System is the most versatile system available for installation. It offers four track styles, allowing installations on any type of truck construction, including sheet and post. The Lift-A-Deck II tracks can also be used with a wide range of Ancra accessories for cargo containment, providing a level of flexibility not found with other securement systems.

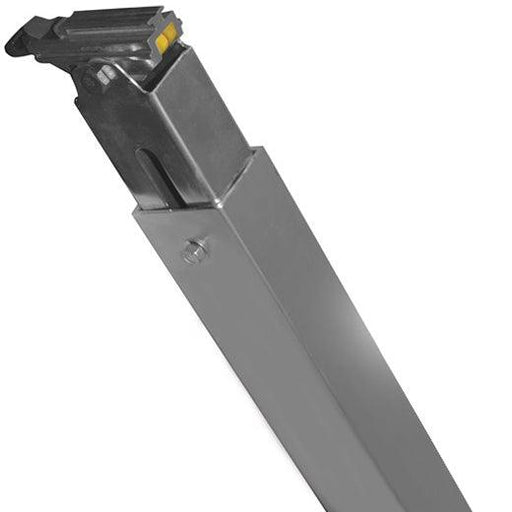

The Lift-A-Deck II Beams can be easily adjusted by a single operator to any required height for either shoring or decking purposes. These deck beams feature an internal locking mechanism to protect against forklift damage. They can be positioned in one-inch increments for optimal space utilization, offering the versatility to choose their exact positioning for optimal usage. The standard beams have a decking working load limit of 998kg and can be adjusted from 221.62cm to 247.65cm and from 237.49cm to 263.53cm. The heavy-duty beams have a decking working load limit of 1360kg and can be adjusted from 237.49cm to 263.53cm. We also offer off-set foot beams that are 2.5cm higher than the standard beams, allowing for beam storage at ceiling height, which was previously prevented by interior wall rails.

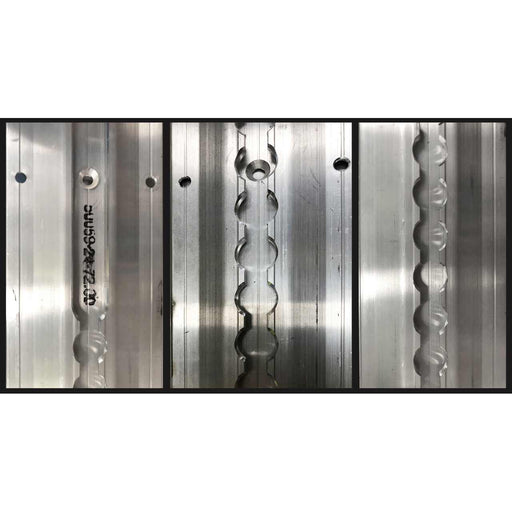

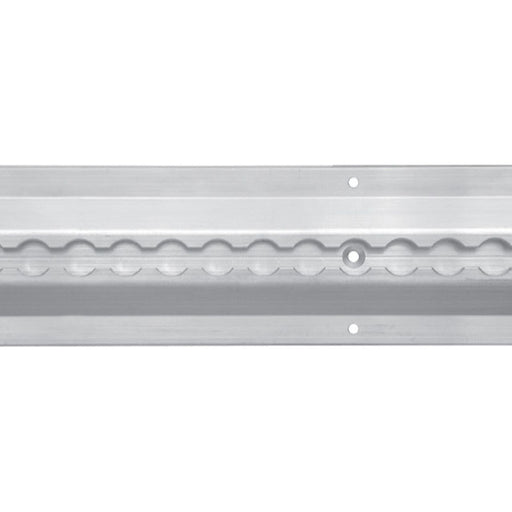

To fully experience the versatility and security of the Lift-A-Deck II System, our durable tracks must first be installed. These tracks are made from high-quality steel, emphasizing both durability and strength. Both Double Row Flanged S-Tracks and Low-Profile Single Row Flanged S-Tracks are available, each providing numerous easy-to-use and reliable anchoring points. These tracks are 182cm long and can be installed in 243cm and 259cm wide trailers. Once installed, they work seamlessly with the decking beams and other securement methods, offering greater flexibility for your cargo securement tasks.
